Brand Name : Fongko
Model Number : FKEQU-129
Certification : CE
Place of Origin : Shenzhen
MOQ : 1 set
Price : Negotiatable
Payment Terms : L/C, T/T
Delivery Time : 3 days

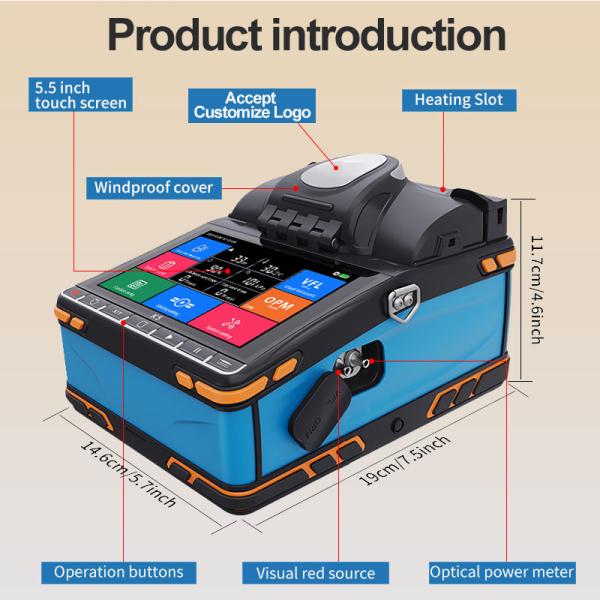

Product name : Fiber Optic Fusion Splicer
Applicable cable : Optical Fiber cable splicing
Application : construction, inspection, maintenance of fiber cable
Splicing loss : 0. 02dB (SM) , 0. 01dB (MM) 0. 04dB (DS/NZDS)
Amplification factor : 3000 times (x axis or Y axis)
Applicable fiber | SMF(G.625)/MMF(G.651)/DSF(G.653)/NZDSF(G.655) |
Fiber diameter | wrapping:80~150um;Coating:0.1~3mm |
Continuous loss | 0.02db(SMF)/0.01db(MMF)/0.04db(DSF/NZDSF) |
Alignment method | Core,dadding |
Focus method | Six-motor auto focus |
Welding method | 8S(SMF Classic value) |
Relay test | 1.96~2.25N |
Image display | Capacitive 5.5 inch touch LCD screen |
Gain | 300(X/Y)/150(X/Y Synchronize) |
Welding record | 100 groups(K5S support cloud storage) |
Typical heating time | 18S |
Heating time | 0~60s |
Heat shrinkable sleeve | 20mm/30mm/40mm/50mm/60mm |
Wireless module type | 2G/4G |
